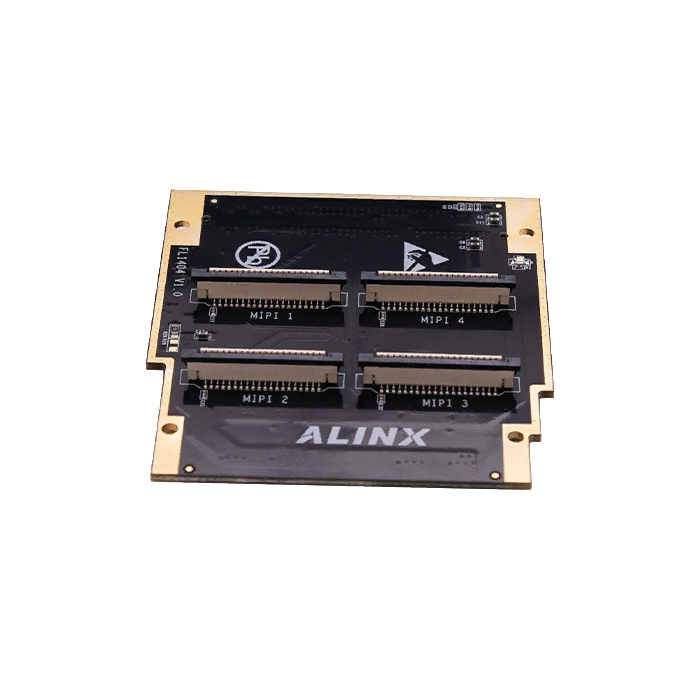

Alinx FL1404 MIPI Interface FMC Expansion Board

Technological expansion board FMC interface MIPI Alinx FL1404 with delivery across the Russian Federation!

The FMC interface expansion board provides a high-speed MIPI (Mobile Industry Processor Interface) interface for FPGA boards. The board is required for use in image and video processing systems where high throughput and low latency are required.

• MIPI CSI-2 interface with four lanes.
• Supports resolution up to 4K UHD (3840 x 2160) at 60 fps.
• Data transfer rate up to 2.5 Gbps per lane.
• Compatible with Xilinx, Intel and Lattice FPGA boards.
• FMC LP connector with high contact density.
• Compact form factor.

It is ideal for a variety of applications.

• Real-time image processing.
• Video analysis.
• Machine vision.
• Medical imaging.
• Industrial automation.

Architecture

The FL1404 expansion board is based on a high-performance MIPI CSI-2 chip that provides a reliable and efficient connection to MIPI sensors. It has four data lanes, each of which can transfer data at up to 2.5 Gbps. This provides a total throughput of up to 10 Gbps, which is enough to handle images with a resolution of up to 4K UHD at 60 fps.

FPGA Compatibility

The FL1404 expansion board is compatible with a wide range of FPGA boards, including Xilinx Zynq UltraScale+, Intel Arria 10, and Lattice ECP5. It connects to the FPGA board via a high-density FMC LP connector, which provides a reliable and high-speed connection.

Software

The FL1404 expansion board comes with a full software suite, including drivers, sample code, and documentation. This simplifies development and integration into existing systems.

Using the Alinx FL1404 MIPI FMC interface expansion board has several advantages.

• High Bandwidth: The MIPI CSI-2 interface with four lanes provides high bandwidth for processing high-resolution images and video.
• Low Latency:  Direct connection to the FPGA via the FMC LP connector ensures minimal latency, which is critical for real-time applications.
• FPGA Compatibility:  Compatibility with various FPGA boards provides flexibility and connectivity to existing systems.
• Ease of integration:  A complete set of software simplifies integration into existing systems and speeds up development.

The Alinx FL1404 MIPI FMC expansion board is a powerful tool for image and video processing. It provides high throughput, low latency, and FPGA compatibility, making it an ideal choice for a wide range of applications.
