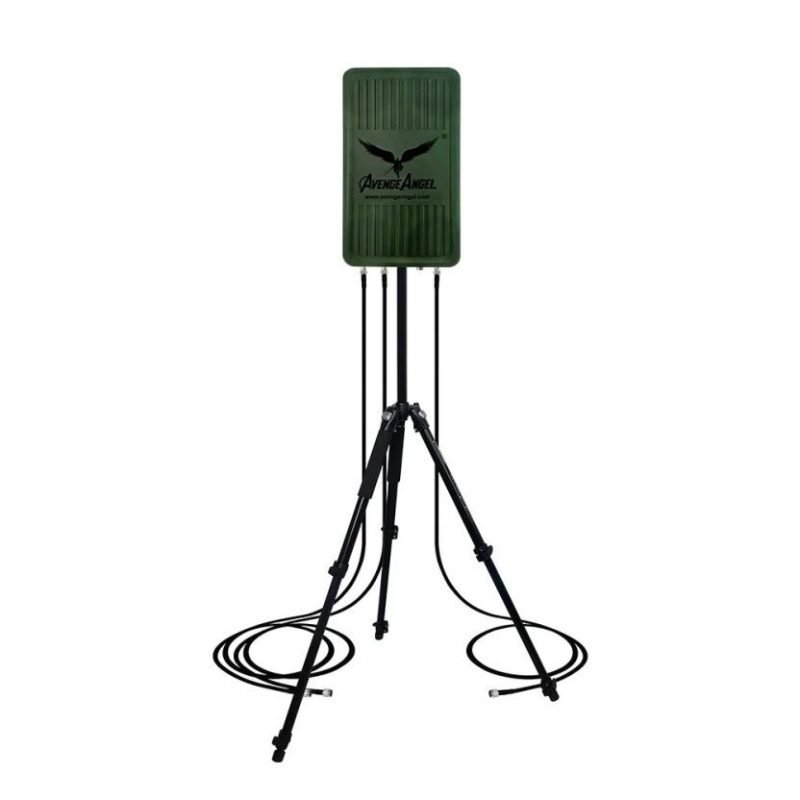

AvengeAngel StarShip Signal Booster

Double the power for perfect video – order the AvengeAngel StarShip FPV signal booster!

Do you dream of a crystal clear FPV signal at any distance? The AvengeAngel StarShip amplifier is a revolutionary solution. It uses a unique MIMO (Multiple Input, Multiple Output) technology. Two antennas work simultaneously for reception and transmission. This provides unprecedented stability of the video signal. Forget about image breaks and “snow” in the glasses. Enjoy a smooth flight even in difficult conditions.

StarShip operates in two key bands at once: 2.4 GHz and 5.8 GHz. It is compatible with all popular analog video systems. The amplifier is connected between your FPV glasses and the receiving antenna. It instantly amplifies the weak incoming signal. This dramatically improves the image quality. You see more details and react to obstacles earlier.

Technological advantages of StarShip

The main strength is the huge gain of up to 68 dB. This is one of the most powerful amplifiers on the FPV market. Such an amplifier breaks through the signal through dense obstacles. Fly behind buildings, in the forest, on difficult routes without fear. The intelligent system automatically selects the best antenna. It provides the highest possible signal quality. MIMO technology really reduces the noise level.

The amplifier is equipped with an advanced overload protection system. It protects sensitive components from damage. StarShip works stably even with strong interference. The case effectively dissipates heat during long-term operation. Overheating does not affect performance. The reliability of the design is confirmed by tests.

Depressingly simple to install and use

Connecting StarShip is incredibly simple. Use the standard SMA connectors on your glasses and antenna. No complex soldering or programming is required. Installation takes literally a couple of minutes. Just insert it into the cable break. The amplifier is immediately ready for work. Control is carried out by one button.

One button allows you to switch operating modes: MIMO/SISO. Choose the optimal mode for your tasks. The indicator clearly shows the power status and mode. No need to remember complex combinations. Power is supplied by a built-in battery. Its capacity is enough for several hours of active use. It is charged via a convenient USB Type-C port.

StarShip is compatible with any FPV goggles that have an SMA input. Works with all standard analog video transmitters. It is a universal tool for improving your video channel. No matter what equipment you are currently using. The amplifier is compact and lightweight. It is easy to take with you on flights.

Technical specifications

• Dual-band operation with 900 MHz and 5.8 GHz frequencies.
• Operating frequency range: 830-960 MHz/4.85-5.95 GHz
• Antenna gain:> 12 dBi+1 (900 MHz);> 18 dBi ± 1 (5.8 GHz)
• Output power: 42 dBm (15 W)
• Input power: 5 ~ 20 dBm
• Noise figure: <2.0 dB
• Transmission gain: 18-20 dB
• Receive gain: 15-17 dB
• Horizontal beam width (0°): 70±10° (900 MHz)/35±5° (5.8 GHz)
• Vertical beam width (0°): 60+10° (900 MHz)/40+5° (5.8 GHz)
• Continuous operation time: 5 hours
• Voltage and capacity: 20V/5000mAh
• Antenna signal amplifier size: 480*260*76 mm
• Weight: 4.2 kg.
