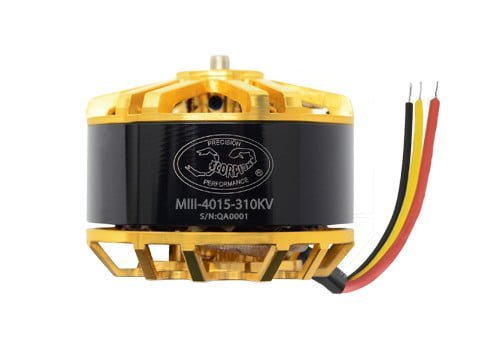

Brushless motor SCORPION Power System MIII-4015-310KV

Description:

Technical specifications:

Stator diameter: 40 mm
Stator thickness: 15mm
Number of stator arms: 12
Number of stator poles: 14
Engine wind: 8T 9T turn Y
Motor wire: 1-core 1.0mm
Engine Kv: 310 kW rpm/Volt
No-Load Current (IO/10V): 0.51A
Motor Resistance (RM): 0.109 Ohm
Maximum continuous current: 26 amps
Maximum continuous power: 962 W
Weight: 208 grams
External diameter: 48.7 mm
Shaft diameter: 3.98 mm
Case length: 36.1 mm
Total shaft length: 41 mm
Max lipo cell: 10 sec
Peak current: 35 amps (2 seconds)
Call power: 1295 W (2 seconds)
Engine time: 5 degrees
Drive frequency: 8 kHz

Buy the best models of engines and other components for quadcopters in our online store. We offer the best prices, proven models and excellent quality.
