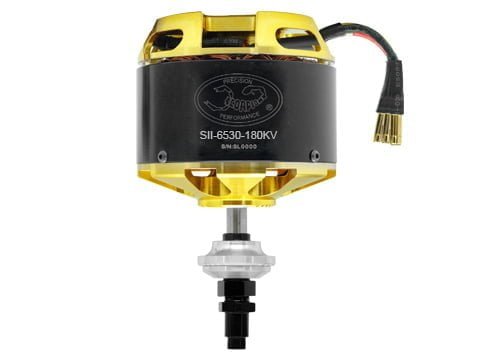

Brushless Motor SCORPION Power System SII-6530-180KV

 Improved manufacturing technology of the SCORPION Power System

Scorpion starts with premium quality aluminum alloy parts that are manufactured on state-of-the-art CNC milling machines. These parts are then electroplated with gold to provide a beautiful and durable finish. The stators are made from high-quality 0.35mm thick laminations to ensure maximum efficiency and minimal eddy current losses. The stators are epoxy coated to prevent short circuits and are wrapped with wire rated for 180 degrees C (356 F). The magnets used in Scorpion Motors are custom made to withstand high temperatures.

Technical characteristics of the motor:

• Stator diameter: 65 mm
• Stator thickness: 30 mm
• Number of stator arms: 12
• Magnetic poles: 14
• Motor Wind: Delta 15 RPM
• Motor wire: 15-wire 0.41mm
• Motor Kv: 180 kv rpm/volt
• No-load current (Io/10V): 1.26A
• Motor resistance (Rm): 0.022 Ohm
• Maximum continuous current: 110 amps
• Maximum continuous power: 4884 W
• Weight: 1043 grams
• External diameter: 76.6 mm
• Shaft diameter: 7.98 mm
• Thread size: M8*1.0
• Case length: 70.4 mm
• Overall shaft length: 115.9 mm
• Max lipo cell: 12 sec
• Engine time: 5 degrees
• Drive frequency: 8 kHz
• Maximum peak current: 160 amps at 2 sec
• Maximum Peak Power: 6800W @ 2s

Thus, this engine rightfully occupies one of the leading positions in the market of motors for copters. Improve your flight! Buy SCORPION Power System SII-6530-180KV engines and reach a qualitatively new level of flights.
