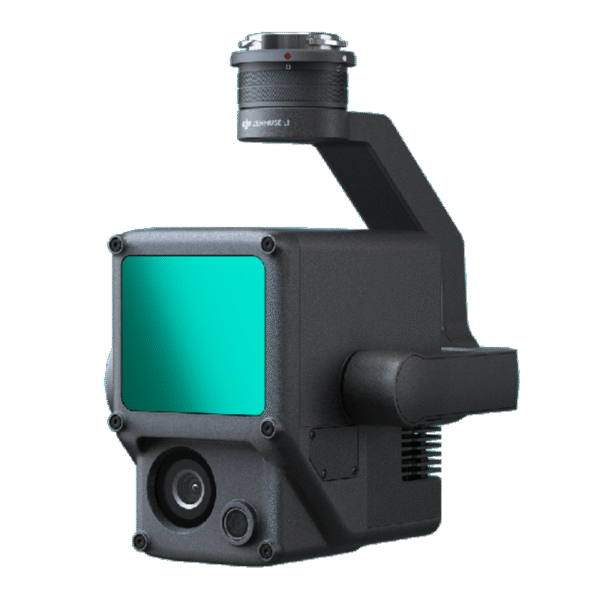

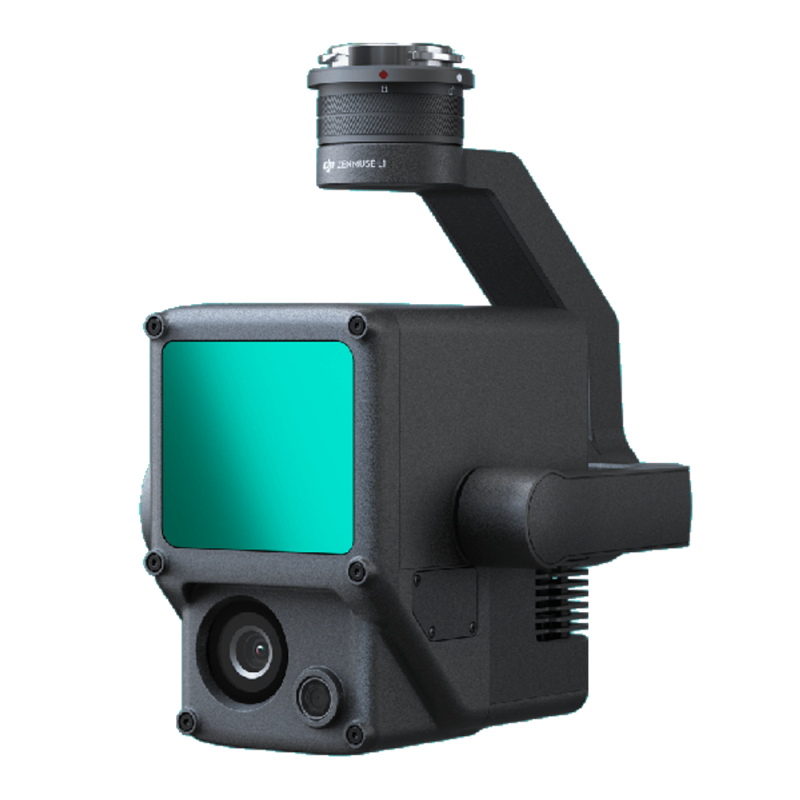

DJI Zenmuse L1 Gimbal

Order DJI Zenmuse L1 lidar at a bargain price

In its “stuffing” this device combines several innovative and high-quality technologies at once. The three-axis suspension in a compact body accommodates Livox Lidar and IMU modules, as well as a first-class camera with a CMOS matrix. Due to this, the device is able to effectively perform tasks on scanning the terrain and creating accurate 3D models. Buying a DJI Zenmuse L1 lidar is easy! Place an order on our website right now. We have built logistics in such a way that you receive your product in the shortest possible time.

Key features of the model

Let’s take a look at the main components of the device. So, it has a CMOS camera with a resolution of 20 MP. It provides color data for the LiDAR module. The three-axis stabilization system provides smooth and clear videos and photos. The device is distinguished by its efficiency. In one flight, it explores up to 2 square kilometers. At the same time, the accuracy of the work is impressive: 5 centimeters vertically and 10 centimeters.

Design features and application specifics

The lidar has compact dimensions and light weight. Due to this, it does not weigh down the drone and has a minimal impact on its maneuverability. The model is compatible with the Matrice 300 RTK quadcopter. Integration with unmanned aerial vehicles allows the device to be used to scan hard-to-reach places.

The device is capable of operating effectively in the harshest conditions. Thus, it will successfully cope with both high and low temperatures. In addition, it can also be used in conditions of high humidity and fog. This allows you to expand the possibilities of using the device.

Technical specifications

• Dimensions: 152 × 110 × 169 mm;
• Weight: 930±10 g
• Nutrition:

Typical: 30W;

Maximum: 60 W;

• IP safety rating: IP54;
• Supported drone: Matrice 300 RTK;
• Operating temperature range:

from -20 to 50 °C;

from 0 to 50 °C (using a standard mapping camera);

• Storage temperature range: -20° to 60° C (-4° to 140° F);

System performance:

• Recognition range: 450 m at 80% reflectivity, 0 kilolux;
• 190 meters at 10% reflectivity, 100 kilolux;

Dot frequency:

• One return: 240,000 points/s;
• Multiple returns: 480,000 points/s;

System accuracy (RMS 1σ)1:

• horizontally: 10 cm at 50 m;
• Vertical: 5 cm at 50 m;
• Real-time point cloud coloring models: True color; reflectivity coloring; height coloring; distance;
• Lidar:
• Distance determination accuracy (RMS 1σ)2: 3 cm at 100 m;
• Maximum supported returns: 3;

Scanning modes:

• Non-repeating scan pattern, repetitive scan pattern;

Field of view:

• Non-repetitive scanning pattern: 70.4°(horizontal)×77.2°(vertical);
• Repeat scan pattern: 70.4°(horizontal) × 4.5°(vertical);
• Laser Safety: Class 1(IEC 60825-1:2014) (Eye Safety);

Inertial navigation system:

• IMU refresh rate: 200Hz;
• Accelerometer range: ±8g;
• Angular range of speed sensor: ±2000 dp/s;
• Rotation accuracy (RMS 1σ)1;
• Real time: 0.3°, post processing: 0.15°;
• Tilt/Rotation Accuracy (RMS 1σ)1;
• Real time: 0.05°, post processing: 0.025°;

Auxiliary vision positioning sensor:

• Resolution: 1280×960;
• FIELD OF VIEW: 95°;

Course camera for shooting:

• Sensor size: 1 inch;
• Pixel resolution: 20 MP;
• Photo size: 5472×3078 (16:9); 4864×3648 (4:3); 5472×3648 (3:2);
• Focal length: 8.8mm/24mm (equivalent);

Shutter speed:

• Mechanical shutter speed: 1/2000 – 8 sec;
• Electronic shutter speed: 1/8000 – 8 sec;
