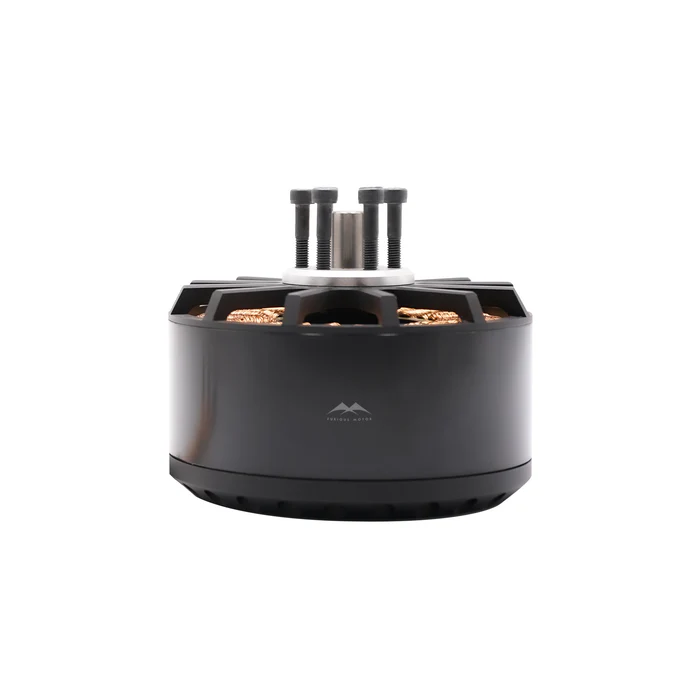

Engine MAD 12070 41KG BLDC

• Aerial photography . The engine allows you to lift heavy equipment for photography, while providing a smooth and stable flight.
• Monitoring and inspection : High torque allows the quadcopter to fly in difficult weather conditions, performing monitoring and inspection tasks.
• Cargo delivery . Thanks to its power, the engine is capable of transporting heavy loads over long distances.

The MAD 12070 41KG BLDC motor is a reliable and powerful solution for professional quadcopters that require high payload and flight stability. Its high specifications and build quality make it an excellent choice for a wide range of applications in the commercial and industrial sectors.

Technical specifications

• Size: ø120 x 70 mm
• KV: 80 / custom made
• Max. Thrust: 40 kg
• Max Torque: 25 Nm
• Max. RPM: 6400
• Recommended ESC: 24C 150A
• Recommended propeller diameter: 36 inches
• Maximum current: 220 A
• Maximum voltage: 80V
• Max. Power: 16 kW
• Li-Po: 12-24 C
• Hall sensor: optional
• Weight: 2.4 kg
