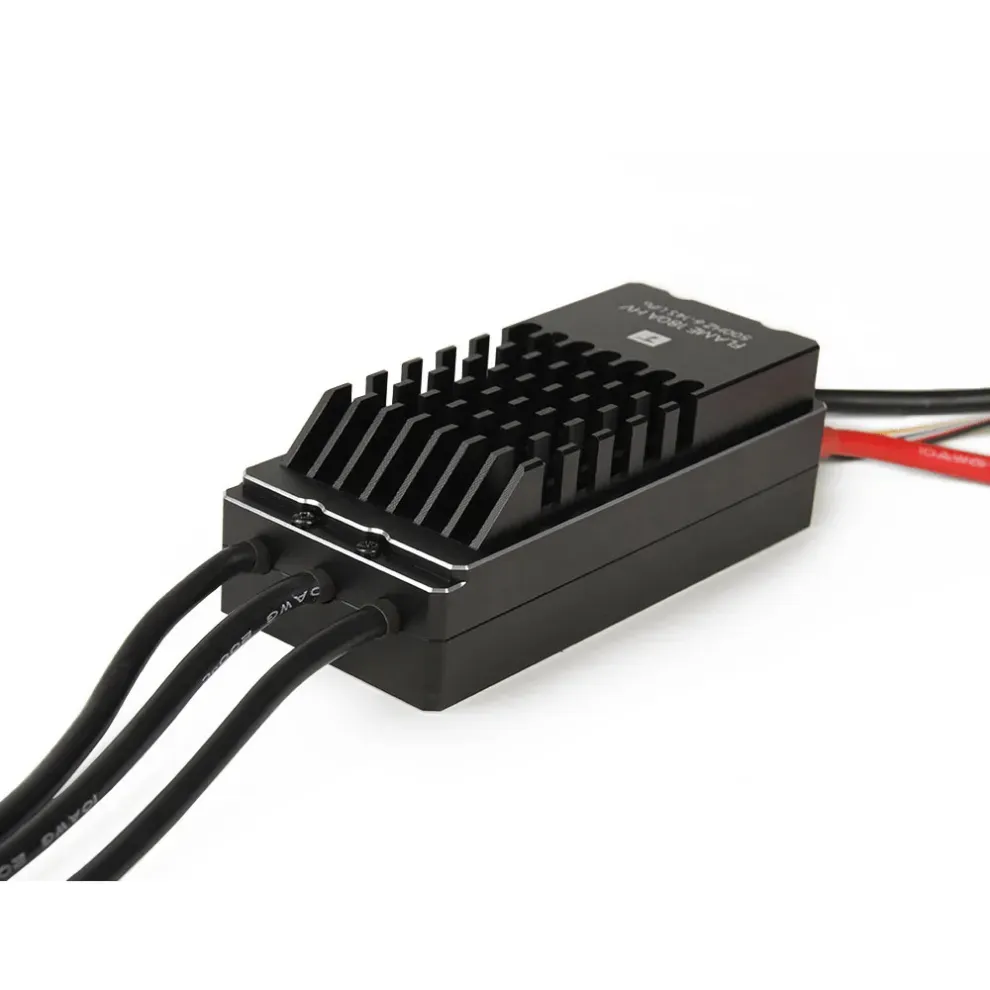

ESC controller T-Motor Thunder 300A 12-24S

Powerful ESC controller T-Motor Thunder 300A 12-24S for quadcopters

The T-Motor Thunder 300A speed controller is a modern device designed to control brushless motors in multicopters and other radio-controlled aircraft.

This model, with its advanced features, is ideal for professional drones and heavy-duty payload systems.

Advantages of the regulator compared to other models

1. The design ensures stable operation even under high loads, thanks to the maximum current (300A).
2. Support from 12 to 24S allows the use of a wide range of batteries, such as LiPo and LiHV, so the user has a wide choice of power sources.
3. The ESC offers a variety of customizable features via software, including braking, acceleration, and overheat protection settings, allowing it to be tailored to specific tasks and flight conditions.
4. The built-in active cooling system and high-quality radiators ensure reliable operation of the controller at high temperatures.
5. The engine is equipped with protection against overheating, overvoltage and short circuit, this significantly increases the service life of the device and ensures safety during operation.

Main characteristics

• Maximum peak current: 300A (ambient temperature 25°C, good cooling, 100V, 3 sec)
• Working DC current: 240A
• Recommended battery: 14-24S (at voltage up to 100V)
• Throttle: PWM: 1000us-2000uS, need calibration
• Signal Frequency: PWM: 50-400HZ. DSHOT: 50-1000 HZ
• Serial port output baud rate: 38400 bps
• Standby current: 100V 6mA; 60V 9mA
• high-voltage protection: Do not start the motor when the supply voltage exceeds the allowable value
• Weight: 870g
• Dimensions: 154.9 x 69.9 x 48.9 mm

The T-Motor Thunder 300A’s capabilities, such as high performance and a wide range of settings, make it a good choice for those who want to control powerful motors in difficult conditions. Choose stable and safe parts for your aircraft – trust the professionals in their field!
