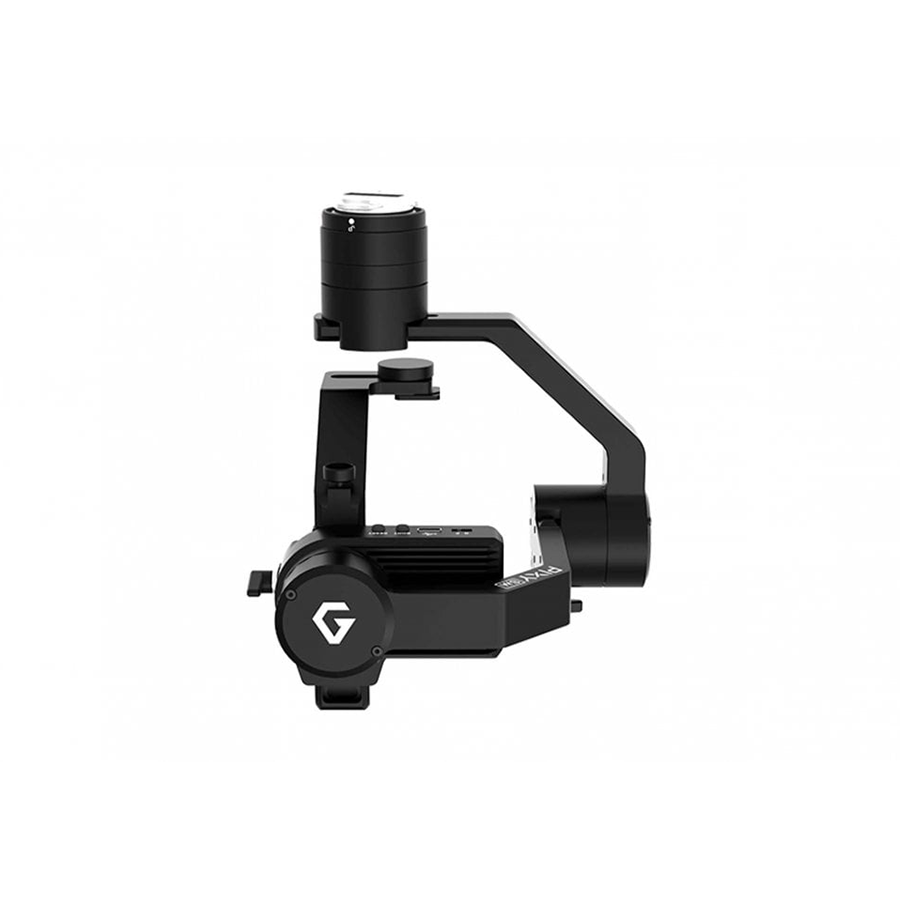

Gremsy Pixy SM Precision Mapping Mount for M300

Buy Gremsy Pixy SM Precision Mapping

The ideal tool for professional tasks is the Gremsy Pixy SM Precision Mapping suspension. A combination of high detail and reliability. The suspension is designed with an emphasis on modern trends. Therefore, it combines advanced stabilization technologies and precision work.

Main characteristics

The gimbal supports a maximum payload of up to 3.6 kg. This allows the use of a wide range of cameras, including high-end models for photogrammetry and inspection. The three-axis stabilization system ensures smooth shooting, minimizing vibrations and shake.

Stabilization technology

An advanced stabilization system that uses real-time data processing algorithms. This not only compensates for camera movements, but also improves image quality, making it clearer and more detailed. Users can get high-quality photos even in difficult weather conditions or in strong winds.

Intuitive control

The gimbal is controlled via an intuitive interface. It allows operators to easily adjust parameters and shooting modes. The gimbal supports various operating modes, which makes it possible to adapt it to specific tasks.

Durability and reliability

Gremsy Pixy SM is made of lightweight but durable materials. This ensures its durability and resistance to adverse operating conditions. The suspension can operate in a temperature range from -10°C to +50°C.

Additional features

The suspension also offers the possibility of connecting additional accessories. For example, GPS modules and data transmission systems. This expands its functionality. And also allows you to perform more complex tasks.

Technical specifications

• Dimensions: 190 x 147 x 157 mm
• Weight: 0.57 kg
• Angular vibration range ± 0.02°
• Maximum controllable rotation speed Pan axis: 100°/s Tilt axis: 100°/s
• Roll axis: 100°/s

Range of mechanical end points

• Pan axis control: +330° to -330°
• Tilt axis control: +135° to -45°
• Roll axis control: from +25° to -90°

Controlled rotation range

• Pan axis control: +160° to -160°
• Tilt axis control: +135° to -45°
• Roll axis control: ±25°
