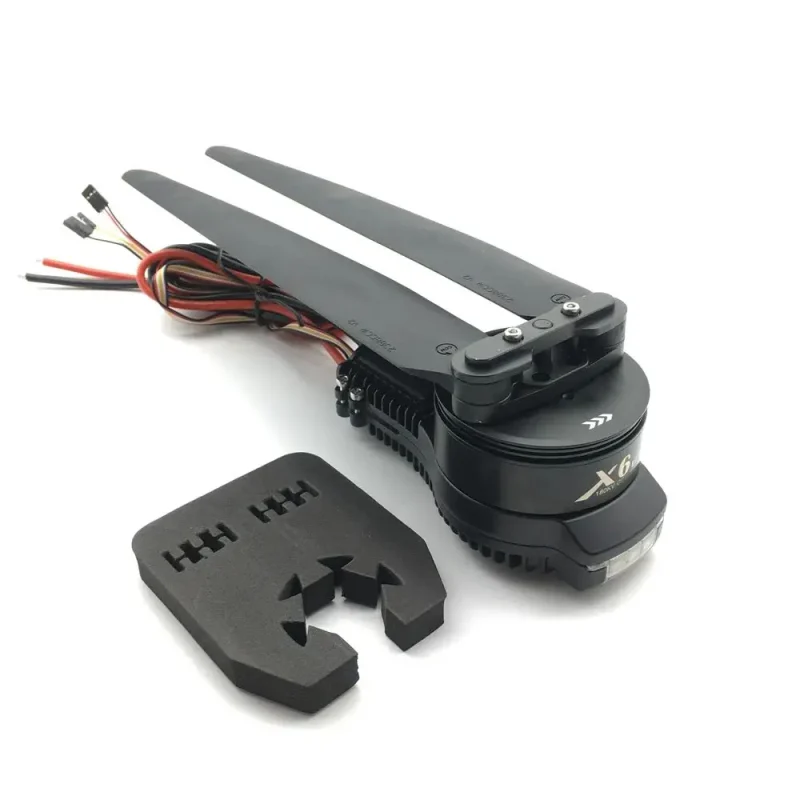

Hobbywing X6 Plus Engine

Description:

Max Payload: 11.8kg/axle (46v, at sea level)
Recommended Takeoff Weight: 3.5-5.5kg/axle (46v, at sea level)
Recommended LiPo Battery: 12-14S
Operating Temperature: -20-55℃
System Weight: 760g
Waterproof: IPX6
KV Rating: 150rpm/V
Stator Size: 62×18mm
Rotor Axle Diameter: 8mm
Mount Diameter: 30mm
Bearings: Japan
PWM Input Signal Level: 3.3V/5V
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1050-1950us (Fixed, not programmable)
Max. Input Voltage: 52.2v (standard), 61v (14S version)
Max. Input Current: 60A (with good cooling)
Max. Peak Current(10s): 100A (with good cooling)
BEC: no
Nozzle mounting holes: φ28.4mm-2*M3
Diameter x Pitch: 24*8.0 inch
