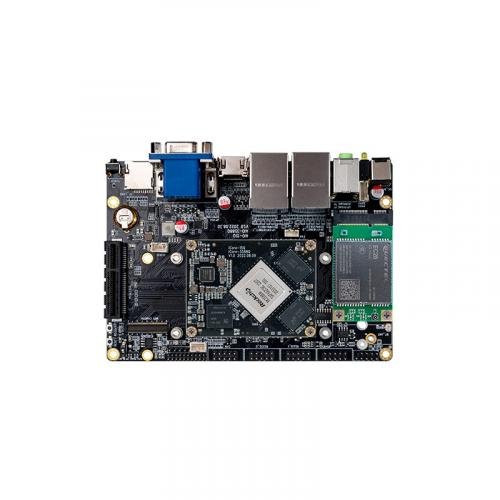

Motherboard AIO-3588MQ 16G LPDDR4 128G eMMC

Motherboard AIO-3588MQ at a bargain price!

The AIO-3588MQ motherboard is a powerful and versatile solution for various computing tasks. It is equipped with 16GB of LPDDR4 RAM and 128GB of eMMC storage, providing high performance and reliability.

Main characteristics

• Processor. The board is equipped with a modern processor that provides high performance and energy efficiency.
• RAM:  16GB LPDDR4 RAM provides fast data processing and multitasking.
• Built-in memory:  128GB eMMC allows you to store a large amount of data and applications.
• Connection interfaces.  The board supports various connection interfaces, including USB, HDMI, Ethernet and others, making it universal for various applications.
• Compact design . The board’s compact dimensions allow it to be used in limited space, which is especially important for embedded systems and portable devices.

Application and use

1. Embedded systems. The board is ideal for use in a variety of embedded systems, such as industrial controllers, medical equipment, and automation systems.
2. Portable devices. Due to its compact size and high performance, the board can be used in portable devices such as tablets and laptops.
3. Network devices . AIO-3588MQ  can be used in network devices such as routers and switches, providing high data transmission speed and reliability.
4. Multimedia systems. The board supports high-quality video and audio playback, making it ideal for use in multimedia systems and home theaters.

The AIO-3588MQ motherboard   with 16GB LPDDR4 and 128GB eMMC is a reliable and high-performance solution for a wide range of applications, providing stable operation and high performance in various conditions.

Technical specifications

• SOC: RockChip RK3588M
• CPU: 8-core 64-bit (4×Cortex-A76+4×Cortex-A55), 8-nm lithographic process, frequency up to 2.1 GHz
• GPU: Quad-core ARM Mali-G610 MP4 GPU
• OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1 support, 450 GFLOPS
• NPU: NPU computing power up to 6 TOPS
• Support for mixed INT4/INT8/INT16 operations
• Support switching frameworks TensorFlow / MXNet / PyTorch / Caffe
• ISP: Dual 16M ISP
• VPU: Video Decoding: 8K@60fps H.265/VP9/AVS2b 8K@30fps H.264 AVC/MVCb 4K@60fps AV1b 1080P@60fps MPEG-2/-1/VC-1/VP8
• Video encoding: 8K@30fps encoding, support H.265/H.264
• RAM: 4GB/8GB/16GB (up to 32GB optional) 64-bit LPDDR4/LPDDR4x/LPDDR5
• Storage: 16GB/32GB/64GB/128GB eMMC.
