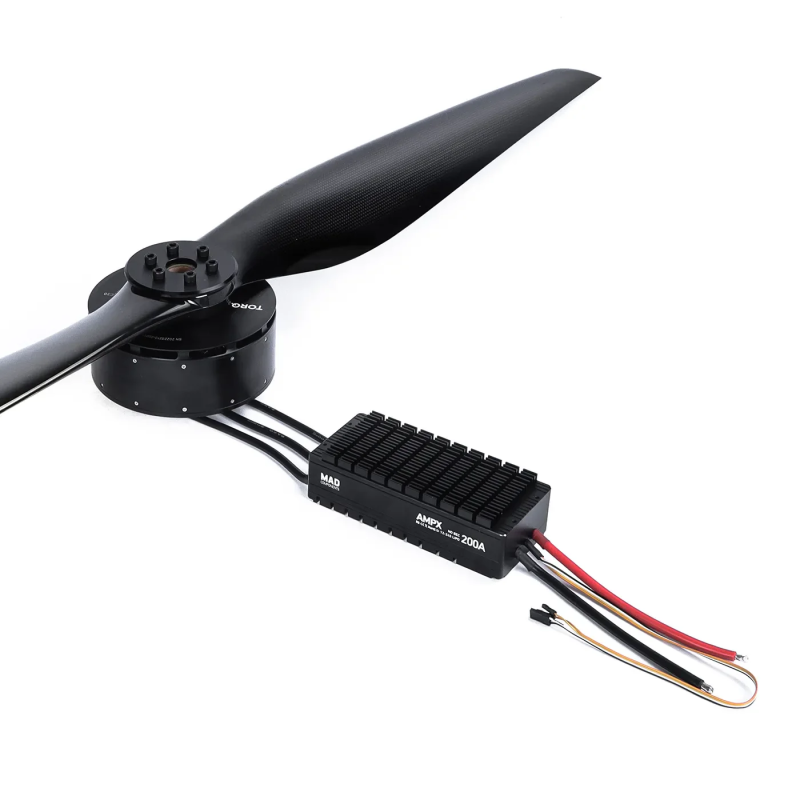

Propeller group HB30-47.5X18 10KV CW+CCW drone arm set

Order a quadcopter propeller-motor group at a bargain price!

The HB30-47.5X18 quadcopter propeller motor group is designed for powerful quadcopters. It combines high performance and reliability. This group includes motors and propellers that provide excellent traction. The motor size is 257 × 123 mm, which allows it to work efficiently.

These motors have a no-load current of no more than 1.8A at 40V. The rated thrust reaches 30kg, making them ideal for heavy loads. The weight of a single motor is 5370±50g. This ensures good stability and balance during flight. The overall balance is ≤50mg, which ensures smooth control.

The maximum rotation speed reaches 3600 rpm. The nominal rotation speed is 2460 rpm. The motor shaft diameter is 25 mm, which simplifies installation. The operating ambient temperature varies from -10℃ to 65℃. This group is also resistant to humidity, which makes it universal.

80A Pro HV FOC Controller

The kit includes an 80A Pro HV FOC controller. Its dimensions are 197 x 88 x 59.5 mm. The weight of the controller is 1.4 kg, which makes it quite light. The rated power of the controller reaches 16 W. This ensures high efficiency and stable operation.

The total length of the output cable is 600 mm. The input cable is 690 mm long. The signal cable reaches 1250 mm, which makes the connection easier. The light cable is 155 mm long. All cables are long enough for easy installation.

The HB30-47.5X18 10KV CW+CCW propeller group and 80A Pro HV FOC controller are ideal for creating a powerful quadcopter. They provide excellent performance and reliability in all conditions. By choosing this group, you get high-quality equipment for your flights.

Technical specifications

• Engine size 257 x 123 mm
• No-load current ≤1.8A/40V
• Torque: 10 KV
• Nominal thrust 30 kg
• Engine weight 5370±50 g
• Total balance ≤50 mg
• Nominal/maximum speed (PRM) 2460/3600
• Shaft diameter 25 mm
• Ambient temperature -10℃-65℃
• Storage temperature -10℃-65℃
• Relative humidity during storage ≤85%
• Name 80A Pro HV FOC
• Dimensions 197 x 88 x 59.5 mm
• Weight 1.4 kg
• Nominal power 16 W
• Total length of output cable 600mm
• Total length of input cable 690 mm
• Total length of signal cable 1250 mm
• The total length of the light cable is 155 mm.
