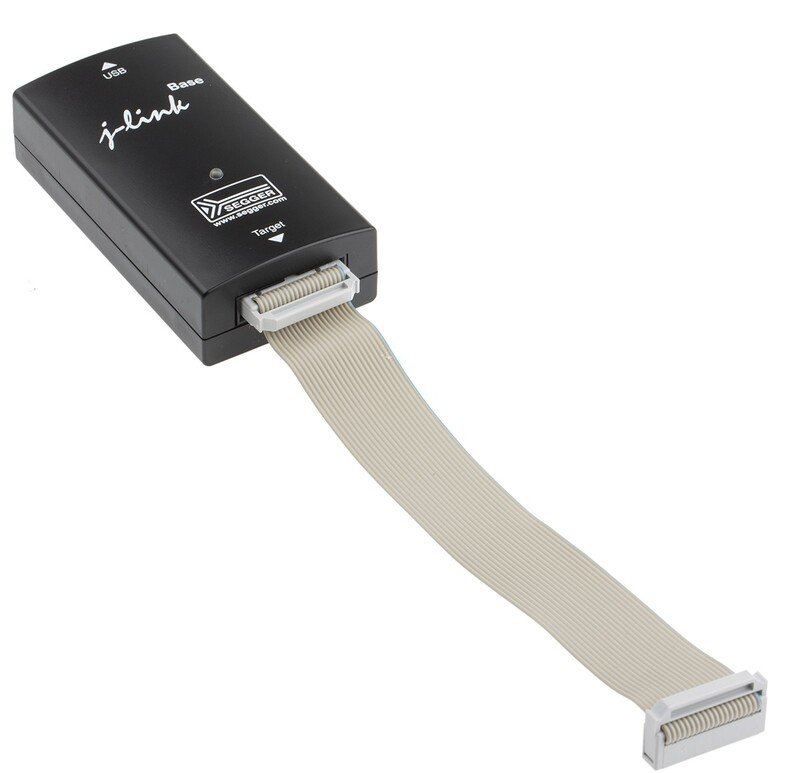

Segger J-Link Base Programmer Segger J-Link Base Programmer 62 715,00 ₽ Add to cart Segger J-Link Base Programmer

Order the Segger J-Link Base programmer at an affordable price and with delivery across Russia!

Segger J-Link Base is a high-quality programmer and debugger. It is needed for programming and debugging microcontrollers. It is one of the most popular and reliable tools for developers. Especially for those who work with microcontrollers from different manufacturers. The programmer provides fast and stable communication between the developer and the target device. It allows you to download firmware, debug and analyze code execution.

Main features and benefits

1. Support for various microcontrollers. J-Link Base supports a wide range of microcontrollers from leading manufacturers. Including ARM, Renesas, NXP, STMicroelectronics and many others. This makes it a versatile tool for various projects.

2. High speed and reliability. With high data transfer speed and stable operation, J-Link Base provides fast code loading and debugging. This greatly speeds up the development and testing process.

3. Debugging support. The programmer allows you to perform a full set of debugging functions, including step-by-step execution, setting breakpoints, monitoring variables and registers. This simplifies identifying and correcting errors in the code.

4. Compatibility with various development tools.  J-Link Base integrates with most popular development tools, such as Keil, IAR Embedded Workbench and other IDEs (integrated development environments). This makes it convenient to use and easy to integrate into existing workflows.

5. Support for various interfaces. J-Link Base provides support for various debugging and programming interfaces. This ensures flexibility and compatibility with various target devices.

6. Ease of use.  J-Link Base is easy to install and configure. Users can get started quickly by following the intuitive instructions and using the intuitive software.

Application areas

The Segger J-Link Base programmer is used for developing and debugging embedded systems and microcontrollers.

• Software development. For programming and debugging microcontroller firmware, creating and testing embedded applications.

• Hardware testing.  To check and debug the hardware components of the system, such as interfaces and sensors.

• Education and Research.  For education and research in the field of embedded systems and microcontrollers development.

Segger J-Link Base is a powerful and versatile tool that greatly simplifies the process of developing and debugging embedded systems. Its reliability, high speed of operation and support for a wide range of microcontrollers make it indispensable for embedded professionals.

Technical specifications

• Direct loading into flash memory of most popular microcontrollers is supported,
  USB 2.0 interface.
• Supported CPUs: Any ARM7/9/11, Cortex-A5/A8, Cortex-M0/M1/M3/M4, Cortex-R4.
• Serial Wire Debug (SWD) support.
• Serial Wire Viewer (SWV) support.
• Automatic kernel recognition.
• JTAG data exchange speed up to 12 MHz.
• Download speed up to 720 kByte/sec (ARM7 @ 50 MHz, 12 MHz JTAG speed).
• Tight integration into IAR Embedded Workbench IDE.
• No additional power source is required, power is supplied from the USB bus.
• Supports adaptive clock frequency change.
• Monitoring of all JTAG interface signals, measurement of target system supply voltage.
• Support for JTAG chains of microcircuits.
• Fully compatible with plug and play standard.
• Standard 20-pin JTAG connector.
• Wide supply voltage range: 1.2V – 3.3V, support for signals with 5V levels.
• The package includes a USB cable and a 20-wire flat cable.
• The package includes the Memory viewer (J-Mem) program.
• TCP/IP server that allows using J-Link over TCP/IP networks.
• An RDI interface is available which allows J-Link to be used via RDI-supported software.
• A stand-alone program for programming Flash memory (J-Flash) is available.
• Flash DLL library that allows you to implement flash memory programming functions in user applications.
• A Software Developer Kit (SDK) is available.
• Embedded Trace Buffer (ETB) support.
• 14-pin JTAG adapter available.
• An adapter with optical galvanic isolation is available.
• Ability to power a programmable system: J-Link can power a programmable system with a current consumption of up to 300 mA, and has overload protection.
